DeepWater Aeration Systems

£3,120.00 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

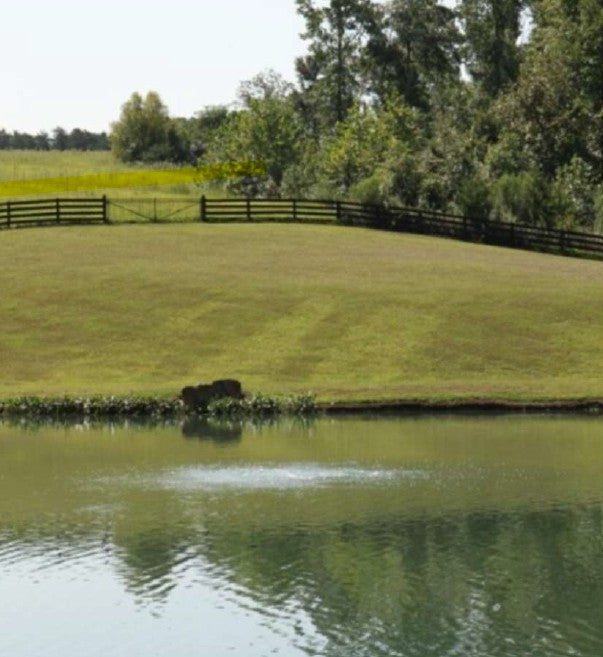

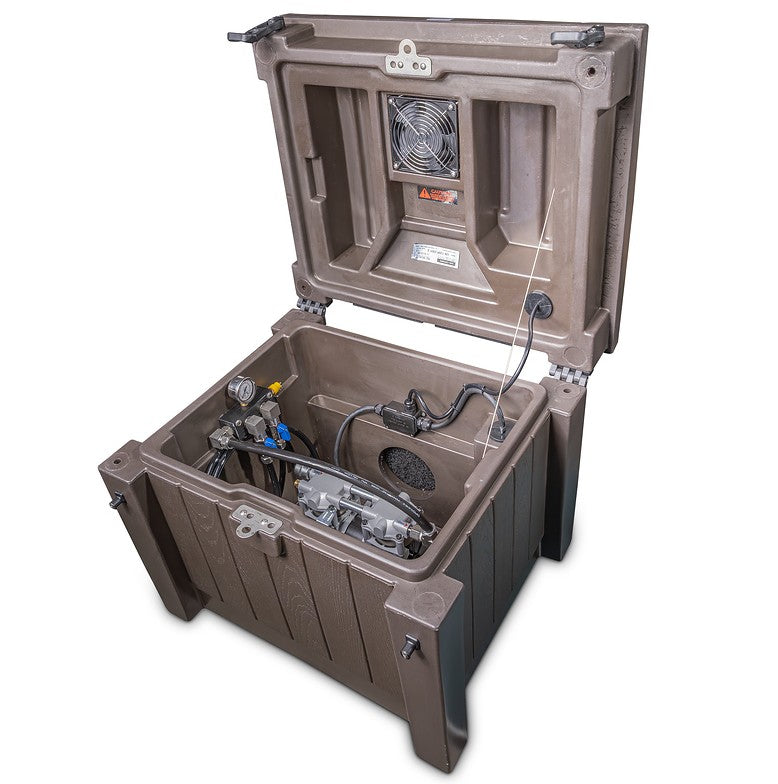

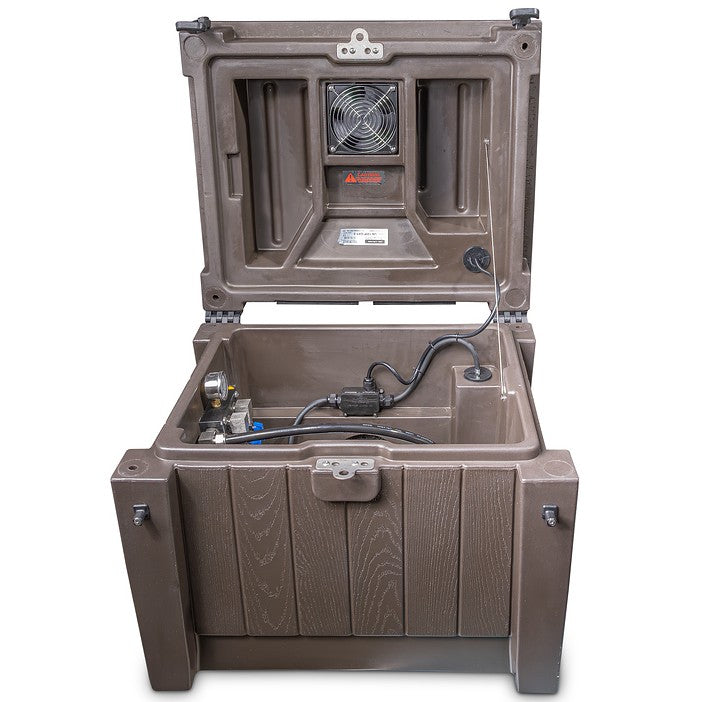

DeepWater Aeration Systems are designed for effectively aerating ponds and lakes with depths between 2 and 10 metres, helping to improve oxygen levels and overall water quality. These high-pressure sub-surface systems include a vented, weatherproof compressor cabinet, high-efficiency air diffusers, and 30m lengths of weighted airline, ensuring reliable air distribution even in deeper water. Suitable for water bodies ranging from 2,000m² to 16,000m² depending on depth, the systems are built to deliver consistent performance across a variety of applications. Available in multiple configurations (System 2, 3, and 4), each option includes a single compressor with a corresponding number of diffusers and airlines, allowing the setup to be tailored to different pond and lake sizes. Designed to operate at higher pressures, DeepWater Aeration Systems provide efficient mixing and oxygen transfer, supporting healthier aquatic environments over the long term.

DeepWater Aeration Systems Include:

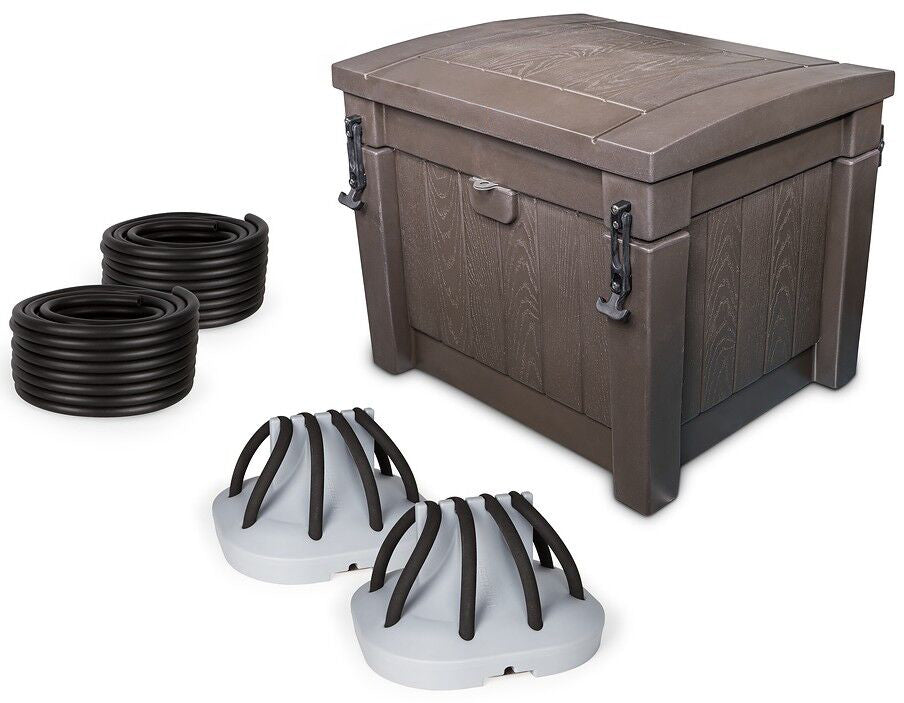

System 2: 1 Compressor / 2 Diffusers / 2 x 30m Weighted Airline

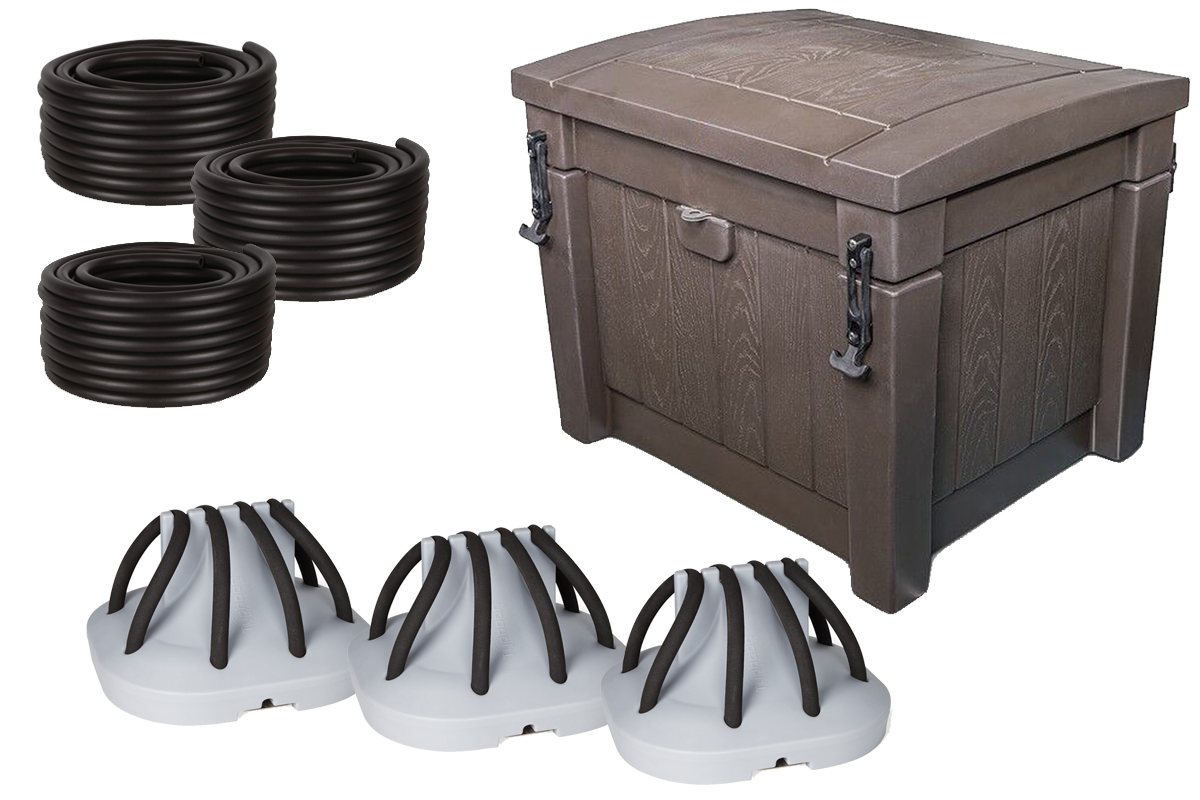

System 3: 1 Compressor / 3 Diffusers / 3 x 30m Weighted Airline

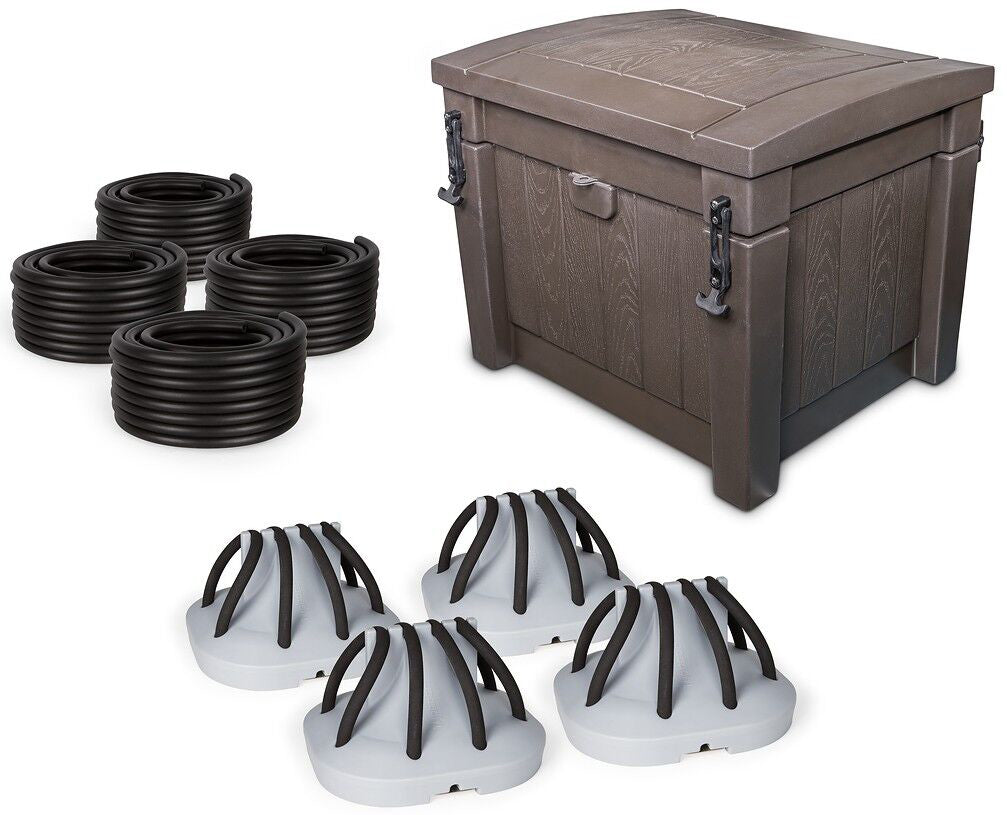

System 4: 1 Compressor / 4 Diffusers / 4 x 30m Weighted Airline

System Surface Area Coverage (depending on depth - see chart below)

System 2: 2,000m² - 8,000m²
System 3: 3,000m² - 12,000m²
System 4: 4,000m² - 16,000m²

DeepWater Aeration Systems – Depth Vs Surface Area Coverage

Water Body Depth	2m	4m	5m	6-10m
	Water Body Surface Area Suitability
DeepWater System 2	2,000m²	2,500m²	4,000m²	8,000m²
DeepWater System 3	3,000m²	4,000m²	6,000m²	12,000m²
DeepWater System 4	4,000m²	5,000m²	8,000m²	16,000m²
	Diameter of Water Influence (per Diffuser)
	25m	35m	45m	60m+

DeepWater Aeration Systems – Technical Data

	DeepWater System 2	DeepWater System 3	DeepWater System 4

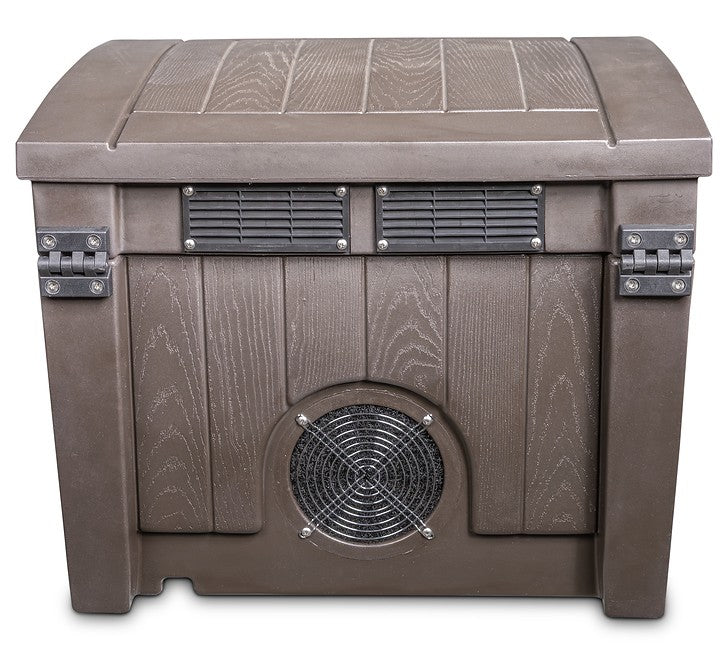

Compressor
Supplied Quantity	1	1	1
Voltage	230V AC / Single Phase	230V AC / Single Phase	230V AC / Single Phase
Frequency (Hz)	50/60	50/60	50/60
Power Consumption	500w	800w	800w
Max. Flow	120L/Min	200L/Min	200L/Min
Max. Pressure	2.5 Bar	2.5 Bar	2.5 Bar
Cabinet Dimensions	L630 x W530 x H510mm	L630 x W530 x H510mm	L630 x W530 x H510mm
Cable Length	10 metres	10 metres	10 metres
Valved Outlets	2	4	4
Max. Diffuser Connections	2	4	4
Max. Hose Length per outlet	100m	100m	100m
Hose Connection Size	12mm / 8mm	12mm / 8mm	12mm / 8mm
Max Ambient Temp (operating)	-10°C to +35°C	-10°C to +35°C	-10°C to +35°C
Max Ambient Temp (storage)	+5°C to +35°C	+5°C to +35°C	+5°C to +35°C
Weight	23kg	27kg	27kg

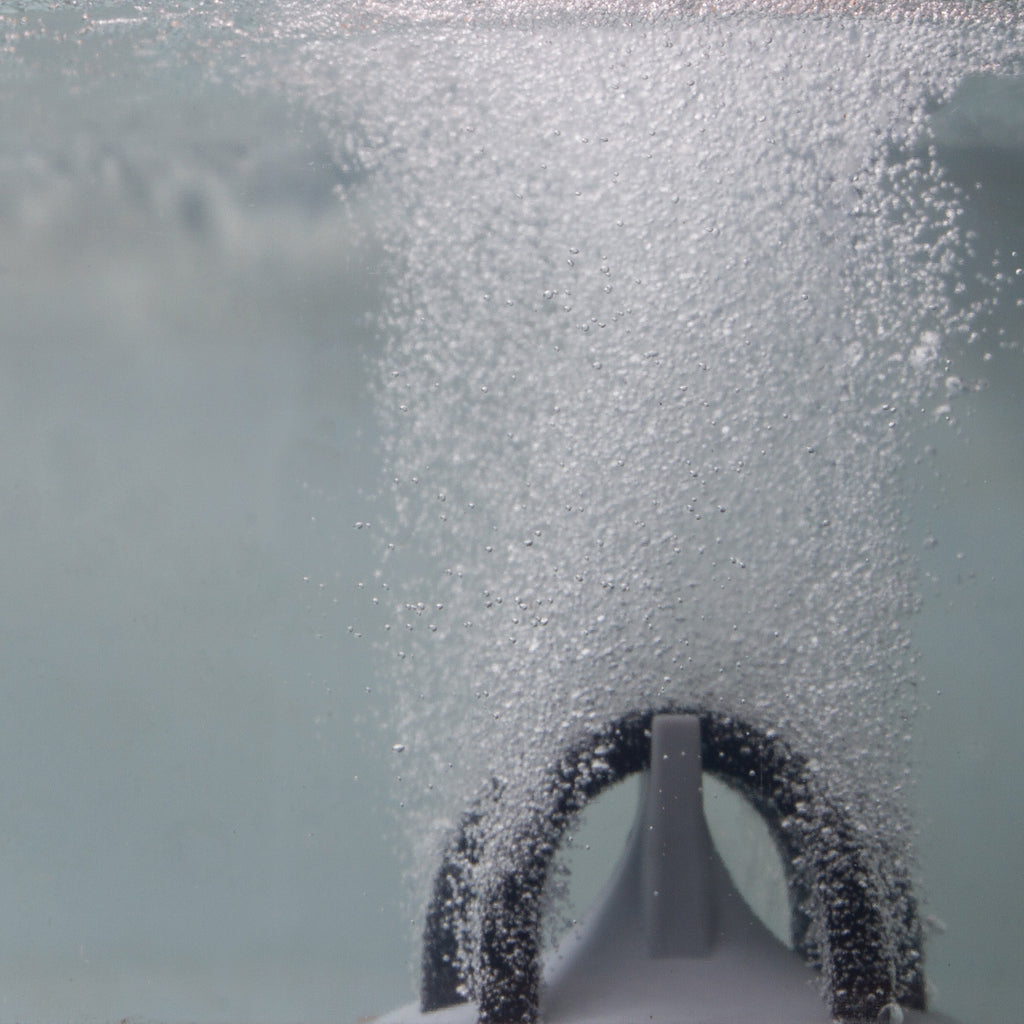

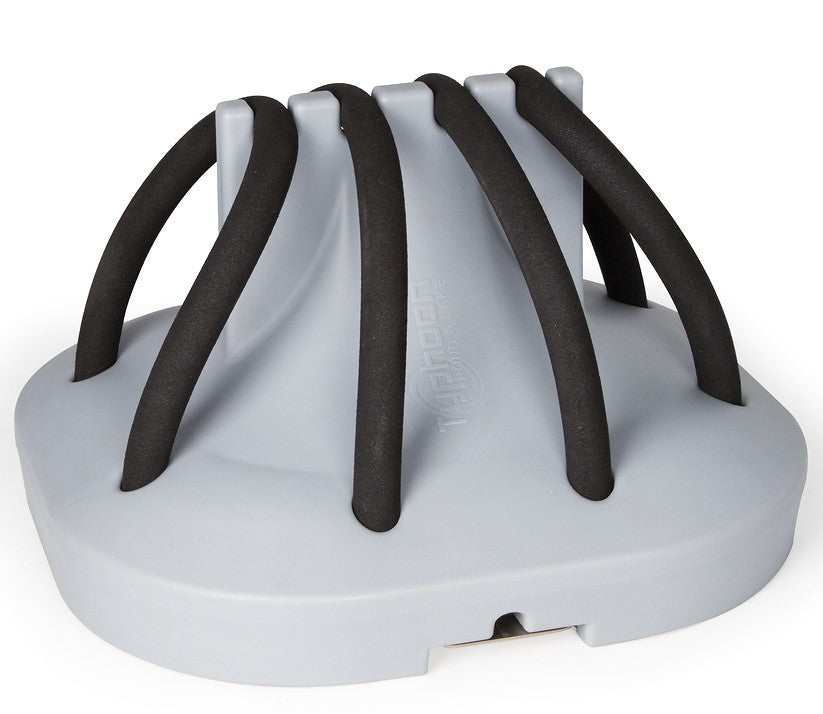

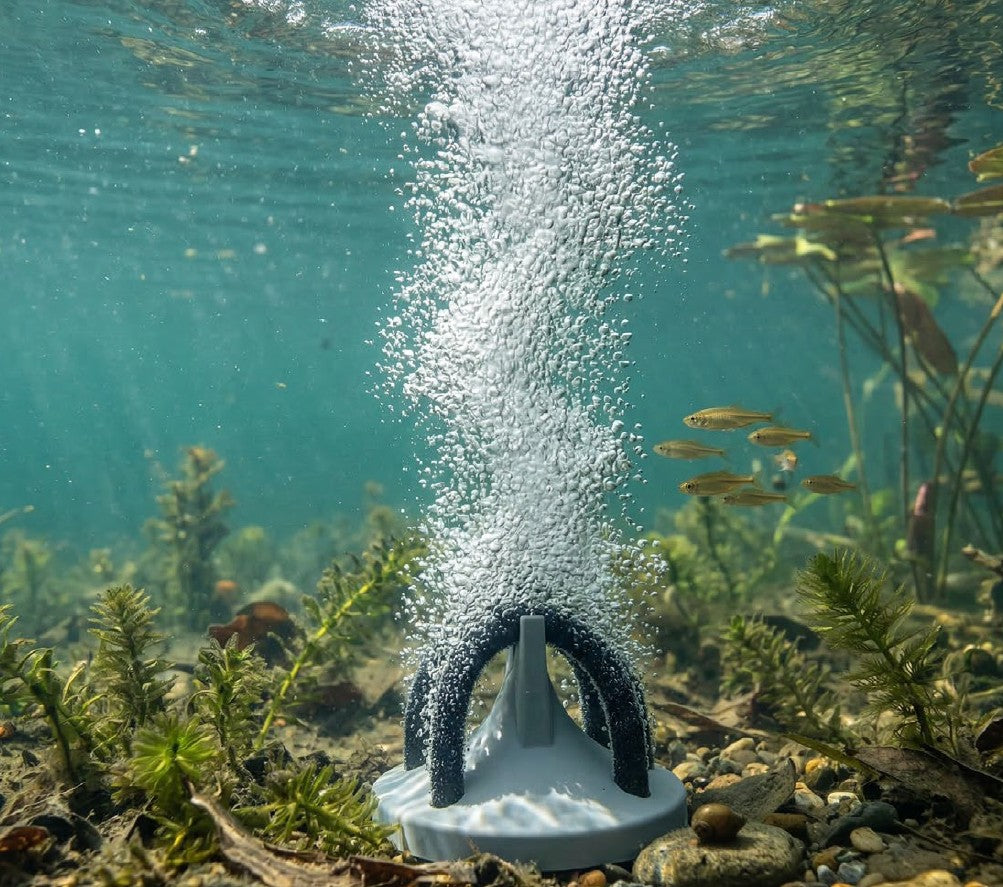

Diffusers
Supplied Quantity	2	3	4
Max. Submerged Depth	10 metres	10 metres	10 metres
Max. Flow Rate	25-150L/Min	25-150L/Min	25-150L/Min
Filling Ballast (not supplied)	Sand/Gravel	Sand/Gravel	Sand/Gravel
Hose Connection Size	8mm	8mm	8mm
Weight (without ballast)	4.5kg	4.5kg	4.5kg

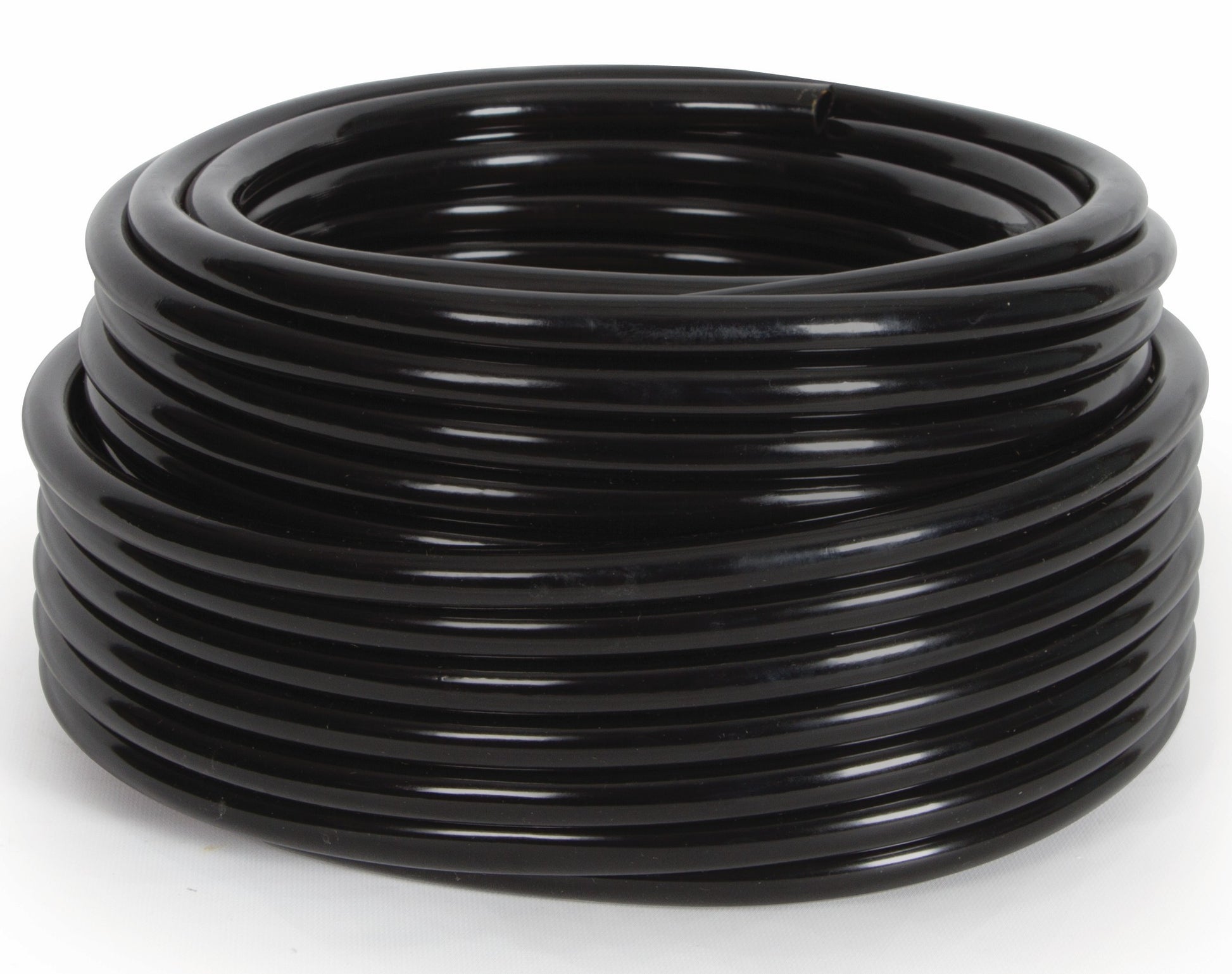

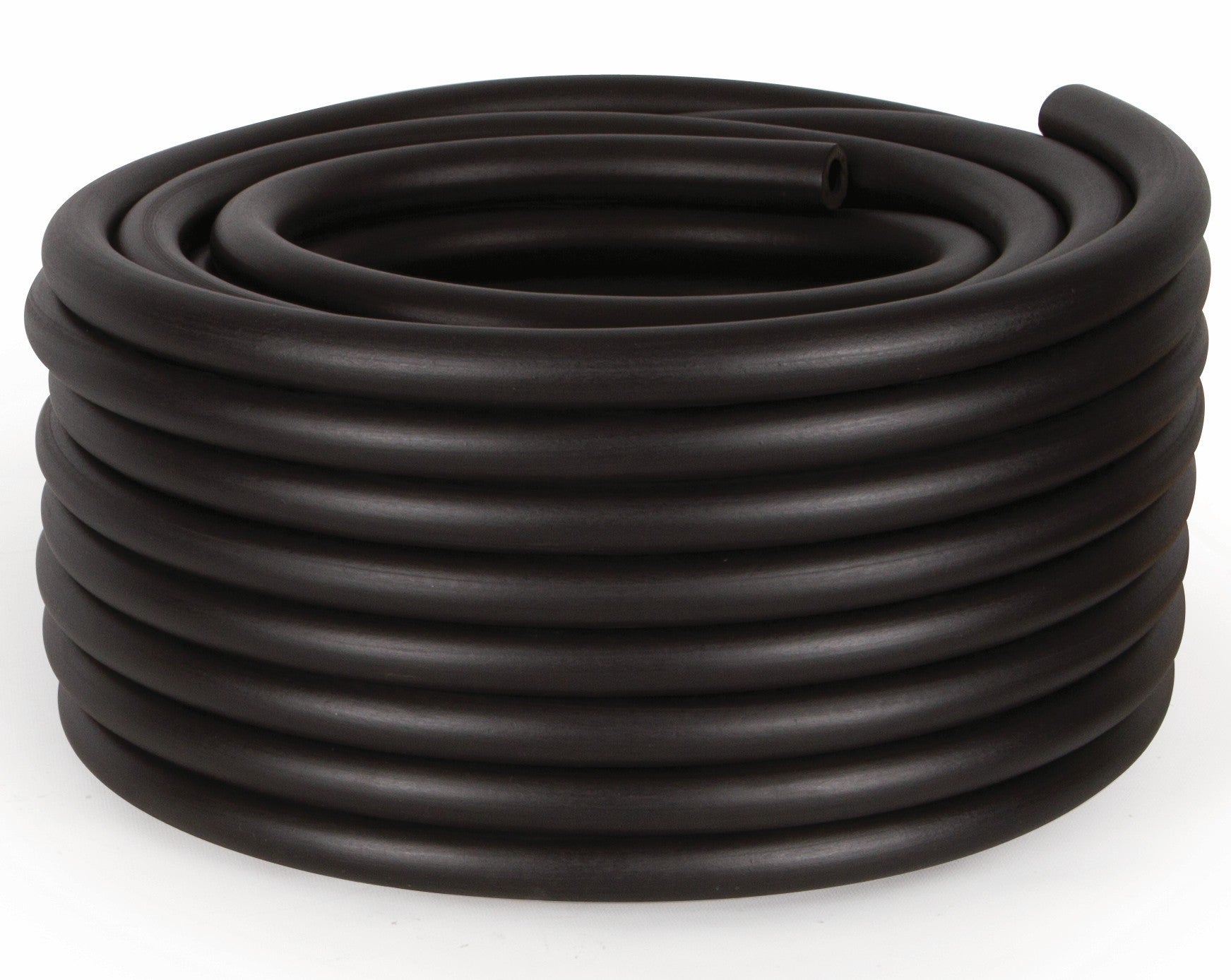

Air Hose
Supplied Quantity	2	3	4
Length (per roll)	30m	30m	30m
Internal Diameter	8mm	8mm	8mm
External Diameter	18mm	18mm	18mm
Self-Sinking	Yes	Yes	Yes
Material	PVC (UV Resistant)	PVC (UV Resistant)	PVC (UV Resistant)
Hose Joiner Supplied	Yes (1 per roll)	Yes (1 per roll)	Yes (1 per roll)
